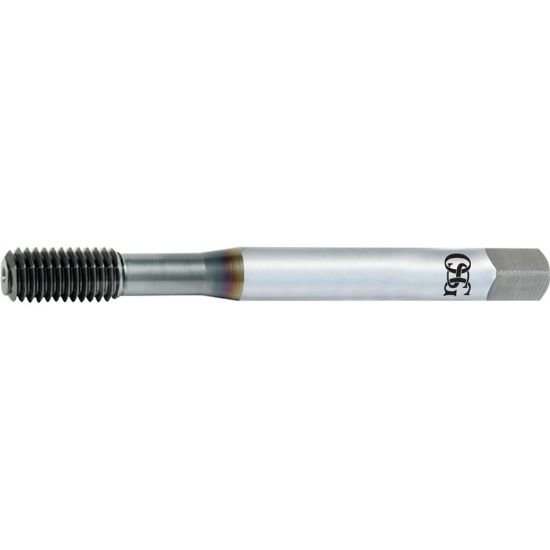

Picture of OSG 1410103901 M6-1.00mm Roll Form Mod Bottom 2.5P HSS-CO Steam Oxide

OSG 1410103901 M6-1.00mm Roll Form Mod Bottom 2.5P HSS-CO Steam Oxide

Part Number: OSG1410103901

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176729
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M6x1.00MM Roll Form Mod Bottom 2.5P HSS-CO Steam Oxide D8 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-CO
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.4803 63.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2547 6.47MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.00MM
Thread Type METRIC
Thread Size M6
Thread Limit D8
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Square 0.1910
Tap Chamfer 2.5P
