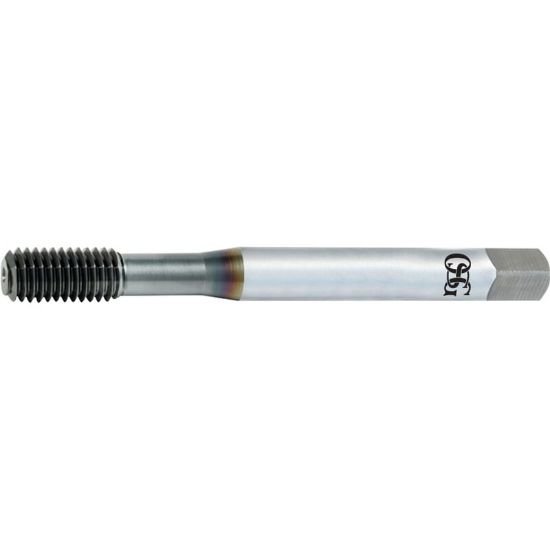

Picture of OSG 1410103005 M5-0.80mm Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1410103005 M5-0.80mm Roll Form Bottoming 1.5P HSS-CO TiN

Part Number: OSG1410103005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176727
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M5x0.80MM Roll Form Bottoming 1.5P HSS-CO TiN D4 Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-CO
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating TIN
Overall Length 2.3622 60.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.80MM
Thread Type METRIC
Thread Size M5
Thread Limit D4
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Tap Square 0.1520
Tap Chamfer 1.5P
