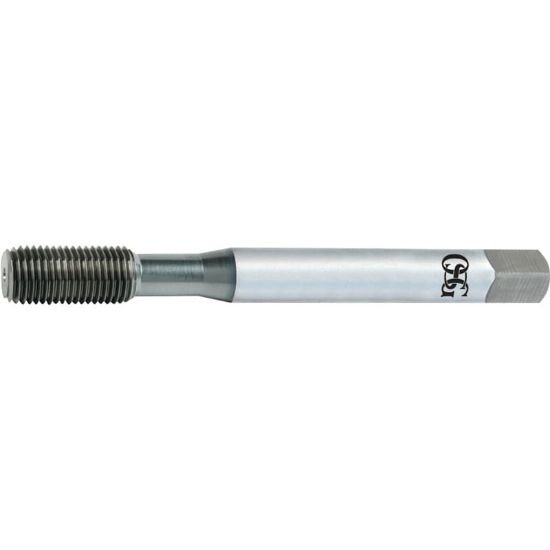

Picture of OSG 1400160108 No.10-32.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

OSG 1400160108 No.10-32.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

Part Number: OSG1400160108
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176999

Description

OSG No.10x32.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN H14 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 32.00TPI
Thread Size No.10
Tap Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H14
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
