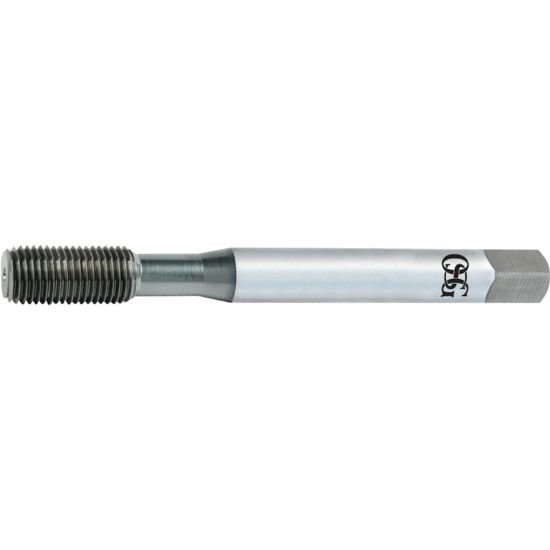

Picture of OSG 1400142808 1/2-13.00TPI Roll Form Bottoming 2.5P HSS-CO TiCN

OSG 1400142808 1/2-13.00TPI Roll Form Bottoming 2.5P HSS-CO TiCN

Part Number: OSG1400142808
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
1/2" × 13.00TPI Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176724
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG 1/2"x13.00TPI Roll Form Bottoming 2.5P HSS-CO TiCN H5/GH5 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 3.3750 85.73MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Tap Square 0.2750
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
