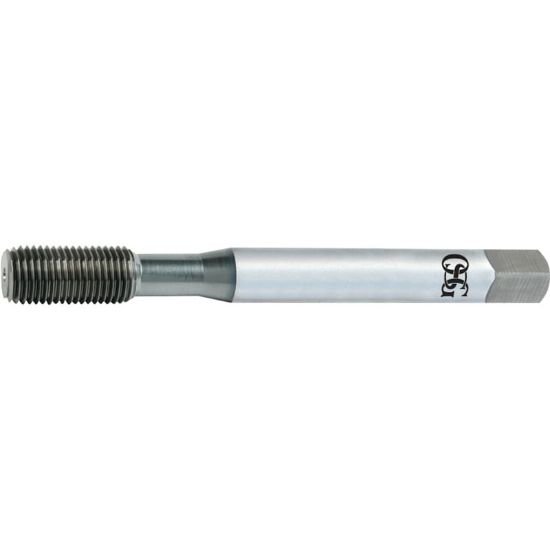

Picture of OSG 1400125605 1/4-20.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1400125605 1/4-20.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

Part Number: OSG1400125605
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
1/4" × 20.00TPI Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176721
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG 1/4"x20.00TPI Roll Form Bottoming 1.5P HSS-CO TiN H5/GH5 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 20.00TPI
Thread Size 1/4"
Tap Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
