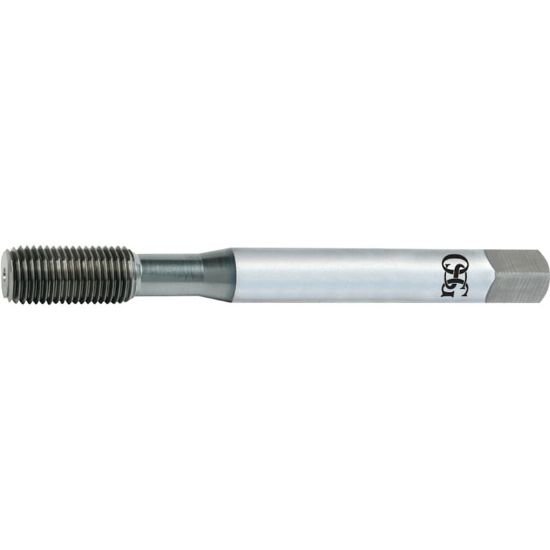

Picture of OSG 1400117805 No.10-24.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO TiN

OSG 1400117805 No.10-24.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO TiN

Part Number: OSG1400117805

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176718
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG No.10x24.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-CO
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating TIN
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Thread Size No.10
Thread Limit H3/GH3
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Square 0.1520
Tap Chamfer 1.5P-2.0P
