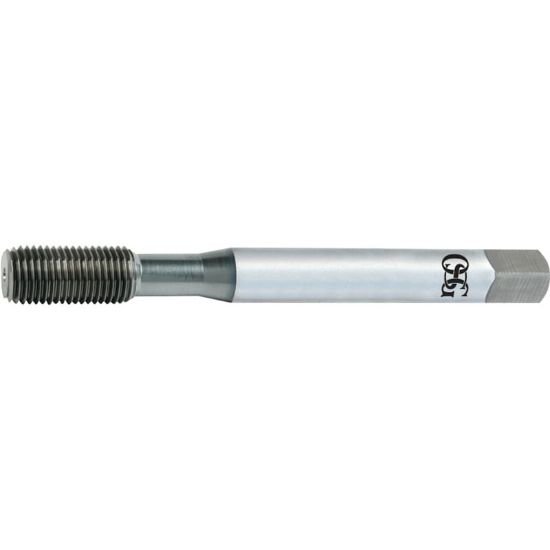

Picture of OSG 1400116301 No.8-36.00TPI Roll Form Bottoming 2.5P HSS-CO Steam Oxide

OSG 1400116301 No.8-36.00TPI Roll Form Bottoming 2.5P HSS-CO Steam Oxide

Part Number: OSG1400116301

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176717
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG No.8x36.00TPI Roll Form Bottoming 2.5P HSS-CO Steam Oxide H5/GH5 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-CO
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 36.00TPI
Thread Type NF/UNF/UNEF
Thread Size No.8
Thread Limit H5/GH5
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1496 3.80MM - 0.1535 3.90MM
Tap Square 0.1310
Tap Chamfer 2.5P
