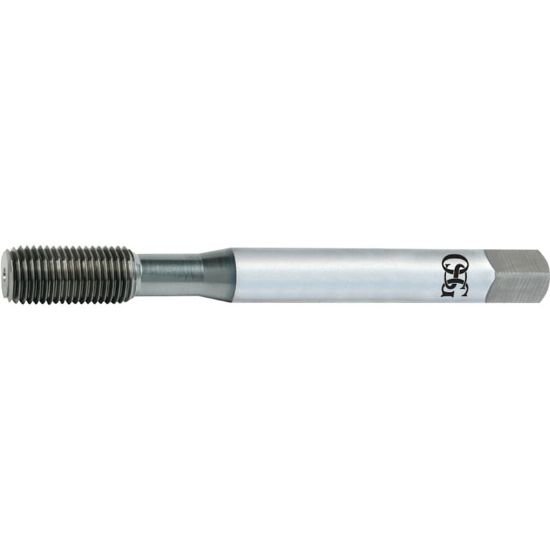

Picture of OSG 1400110105 No.6-32.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1400110105 No.6-32.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

Part Number: OSG1400110105
Looking for alternatives…
Find a drill for this tap No.6 × 32.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176995
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG No.6x32.00TPI Roll Form Bottoming 1.5P HSS-CO TiN H4/GH4 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 32.00TPI
Thread Size No.6
Tap Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
