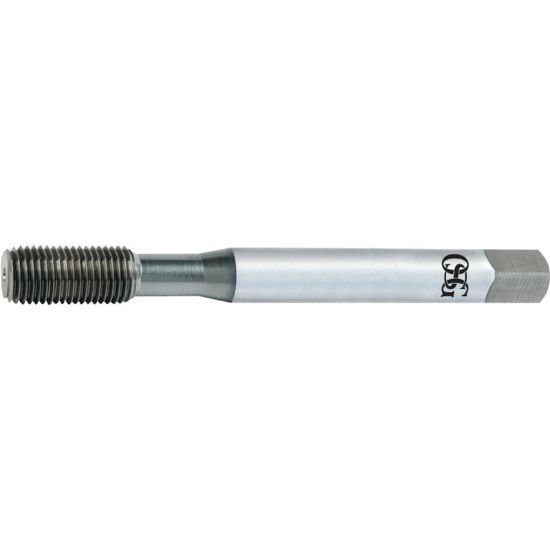

Picture of OSG 1400105305 No.4-40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN

OSG 1400105305 No.4-40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN

Part Number: OSG1400105305
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176994

Description

OSG No.4x40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
