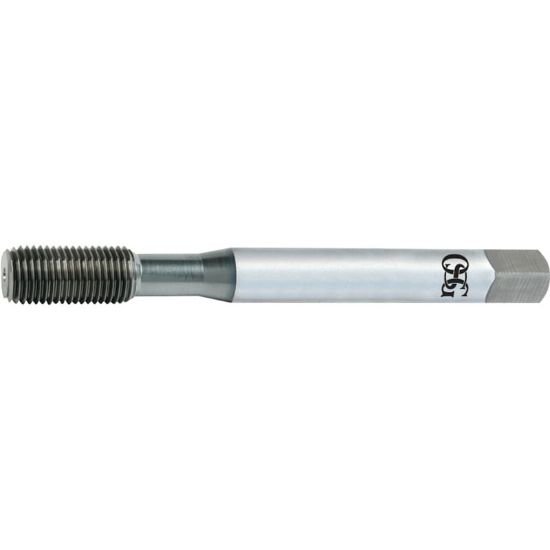

Picture of OSG 1400102301 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO Steam Oxide

OSG 1400102301 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO Steam Oxide

Part Number: OSG1400102301
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
No.2 × 56.00TPI Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176715
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG No.2x56.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 56.00TPI
Thread Size No.2
Tap Drill Range 0.0768 1.95MM - 0.0791 2.01MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
