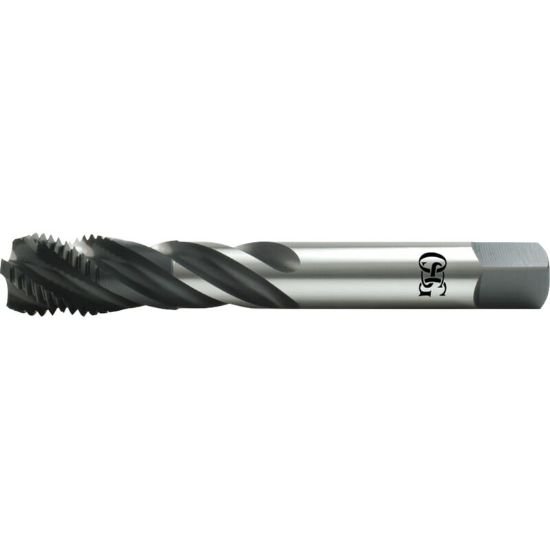

Picture of OSG 1301501501 1-3/8-6.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

OSG 1301501501 1-3/8-6.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Part Number: OSG1301501501
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176989

Description

OSG 1-3/8"x6.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide 2B NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 1.1070 28.12MM
Flutes/Inserts 5
Thread Pitch 6.00TPI
Thread Size 1-3/8"
Tap Drill Range 1.2449 31.62MM - 1.2776 32.45MM
Tap Square 0.8310
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
