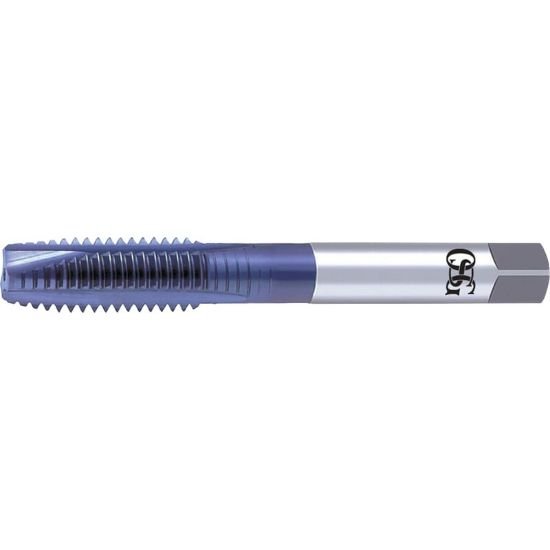

Picture of OSG 1115810508 M8-1.25mm Cut Spiral Point Plug 4.5P-5.5P HSSE-V TiCN

OSG 1115810508 M8-1.25mm Cut Spiral Point Plug 4.5P-5.5P HSSE-V TiCN

Part Number: OSG1115810508

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176981
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M8x1.25MM Cut Spiral Point Plug 4.5P-5.5P HSSE-V TiCN D5 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TICN
Overall Length 2.7165 69.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3177 8.07MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit D5
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Tap Square 0.2380
Tap Chamfer 4.5P-5.5P
