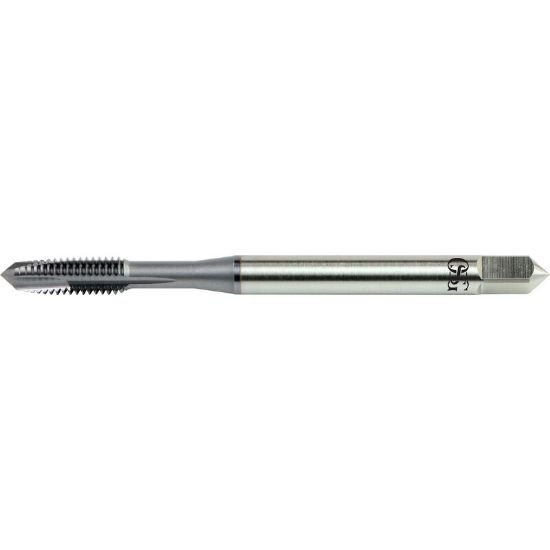

Picture of OSG 1111601303 M12-1.75mm Cut Spiral Point Plug 3.5P-4.5P HSSE Nitride

OSG 1111601303 M12-1.75mm Cut Spiral Point Plug 3.5P-4.5P HSSE Nitride

Part Number: OSG1111601303

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176899
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M12x1.75MM Cut Spiral Point Plug 3.5P-4.5P HSSE Nitride D6 Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Graphite, Aluminum, Brass, Plastic
Coating Nitride
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3669 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.75MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit D6
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Square 0.2750
Tap Chamfer 3.5P-4.5P
