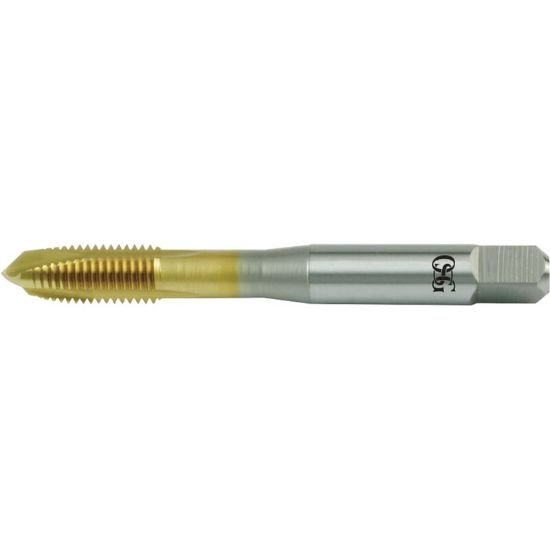

Picture of OSG 1101509305 No.10-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

OSG 1101509305 No.10-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

Part Number: OSG1101509305
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176980

Description

OSG No.10x24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN H5/GH5 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size No.10
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1510
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
