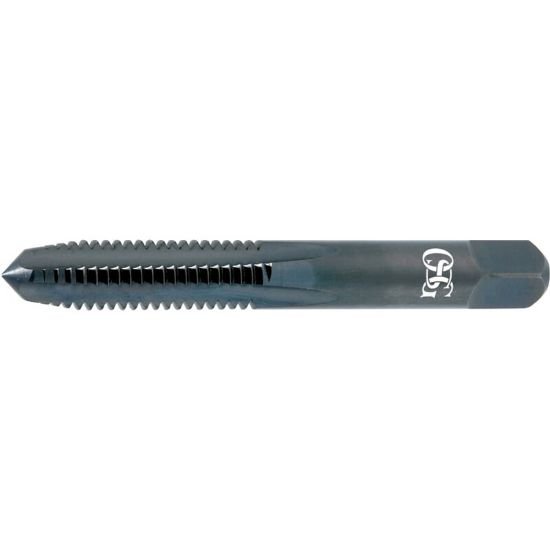

Picture of OSG 1023801 No.6-32.00TPI Hand Tap Bottoming 1.5P-2.0P HSS Steam Oxide

OSG 1023801 No.6-32.00TPI Hand Tap Bottoming 1.5P-2.0P HSS Steam Oxide

Part Number: OSG1023801
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176895

Description

OSG No.6x32.00TPI Hand Tap Bottoming 1.5P-2.0P HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1400 3.56MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.6
Tap Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tap Square 0.1090
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
