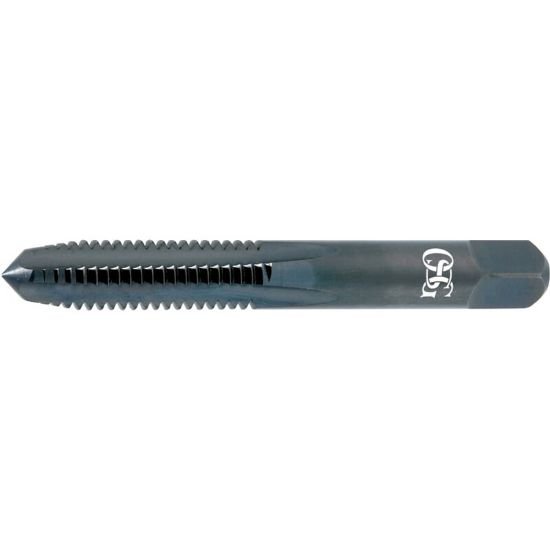

Picture of OSG 1023701 No.6-32.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide

OSG 1023701 No.6-32.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide

Part Number: OSG1023701

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176697
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG No.6x32.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Coating Steam Oxide
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1400 3.56MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.6
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tap Square 0.1090
Tap Chamfer 3.5P-4.5P
