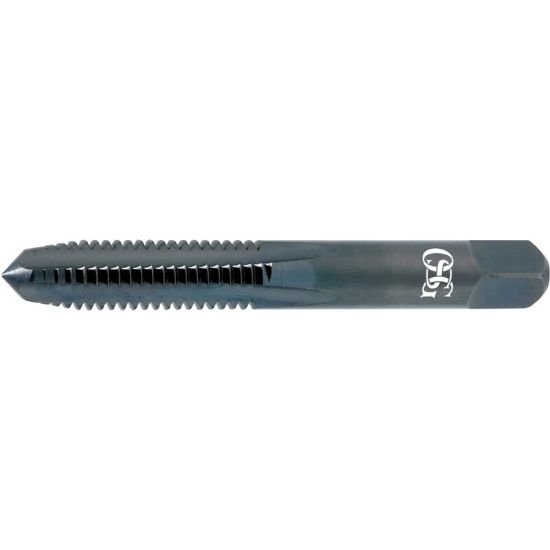

Picture of OSG 1010108 No.0-80.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS TiCN

OSG 1010108 No.0-80.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS TiCN

Part Number: OSG1010108

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176979
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG No.0x80.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS TiCN H3/GH3 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating TICN
Overall Length 1.6250 41.28MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1400 3.56MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 80.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.0
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0469 1.19MM - 0.0500 1.27MM
Tap Square 0.1090
Tap Chamfer 3.5P-4.5P
