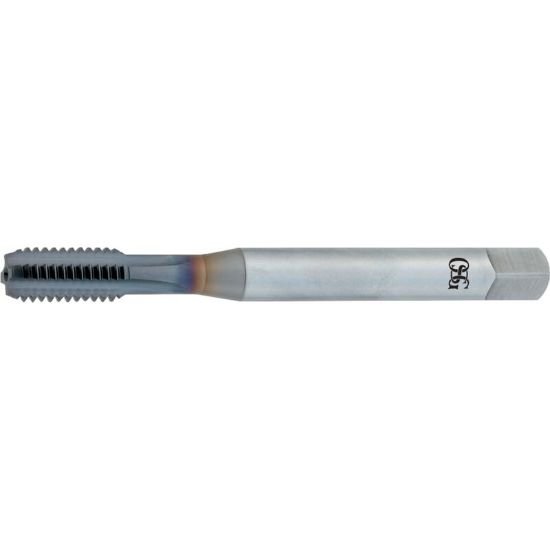

Picture of OSG 1005203308 7/8-14.00TPI Cut Straight Flute Bottoming 1.5P-2.0P HSSE-V TiCN

OSG 1005203308 7/8-14.00TPI Cut Straight Flute Bottoming 1.5P-2.0P HSSE-V TiCN

Part Number: OSG1005203308
Looking for alternatives…
Find a drill for this tap 7/8" × 14.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176893
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG 7/8"x14.00TPI Cut Straight Flute Bottoming 1.5P-2.0P HSSE-V TiCN H5/GH5 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Straight Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 4.9210 124.99MM
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 5
Thread Pitch 14.00TPI
Thread Size 7/8"
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5220
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
