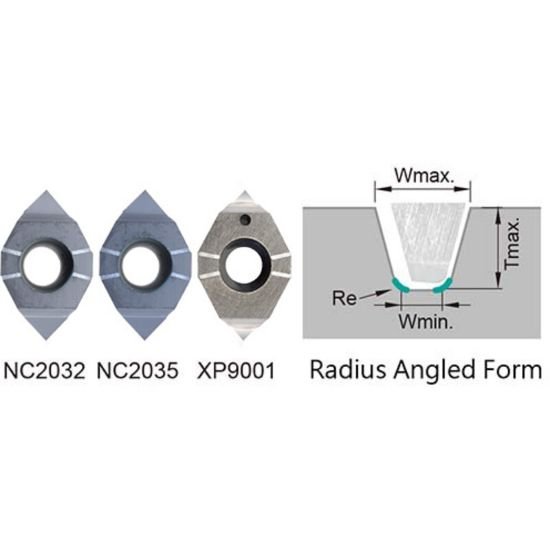

Picture of Nine X060A90W020R NC2032 Indexable Drill Positive TiAIn

Nine X060A90W020R NC2032 Indexable Drill Positive TiAIn

Part Number: EVE24285

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: 1004479
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

NINE drill with TiAIN coating grade NC2032. Brand: NINE. Coating: TiAIN. Grade: NC2032.

Key Details

Materials & Finish

  • Coating: TiAIN
  • Grade: NC2032

Grades & Coatings

  • Alternate Description: NINE X060A90W020R NC2032 Indexable Drill Positive TiAIN X060A90W020R NC2032 X060A90W020R NC2032 NC2032

Other Details

  • Brand: NINE
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Drills with indexable positive TiAIN grade. Used for drilling operations. Designed for precision cutting tasks.

Composition

TiAIN coating, NC2032 grade, X060A90W020R design.

Typical Uses

Drilling in metal work. Applied in machining. Suitable for high-speed operations.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiAIN
Insert Or Tool Insert
Insert Application General Purpose
Corner Radius 0.0015 0.04MM
Insert Style XO
Insert Type Positive
Insert Size (IC) 6
Grade NC2032
Cut Diameter Min 0.0080 0.20MM
Drill Type Indexable Drill
Depth Of Cut Max 0.0400
Type Indexable Drill Spot Drill
Cut Diameter Max 0.0870 2.21MM
Chamfer Angle 90.0°
