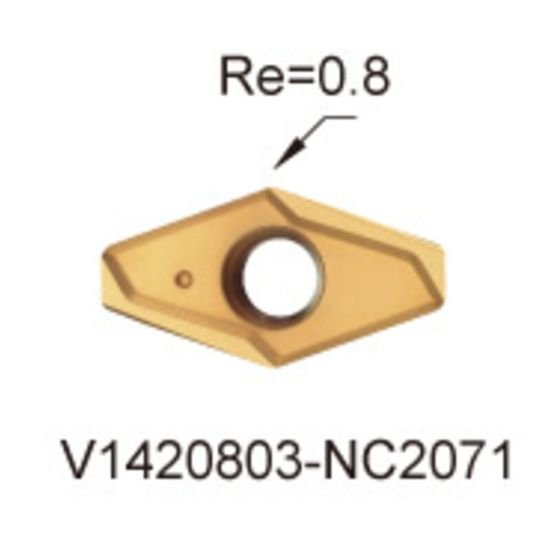

Nine V1420803-NC2071 K20F Flat Blade Indexable Drill Positive TiN

Part Number: EVE20063

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: 1004518
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

NINE drill blade with TiN coating grade NC2071. Brand: NINE. Coating: TiN. Grade: NC2071.

Key Details

Materials & Finish

  • Coating: TiN
  • Grade: NC2071

Grades & Coatings

  • Alternate Description: NINE V1420803-NC2071 K20F Flat Blade Indexable Drill Positive TiN V1420803-NC2071 K20F V1420803-NC2071 K20F

Other Details

  • Brand: NINE
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Drills with flat blade design. Performs drilling tasks using indexable positive TiN coating. Suitable for metal cutting operations.

Composition

K20F blade, TiN coating, NC2071 grade.

Typical Uses

Drilling in metal work. Used in machining. Applied in precision cutting tasks.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiN
Insert Or Tool Insert
Insert Application General Purpose
Corner Radius 0.0310 0.79MM
Insert Style V
Insert Shape Or Cutter Pocket Shape Flat Blade
Insert Type Positive
Insert Size (IC) 8
Grade NC2071
Cut Diameter Min 0.6300 16.00MM
Drill Type Indexable Drill
Depth Of Cut Max 0.1100
Type Indexable Drill Spot Drill
Chamfer Angle 142.0°
