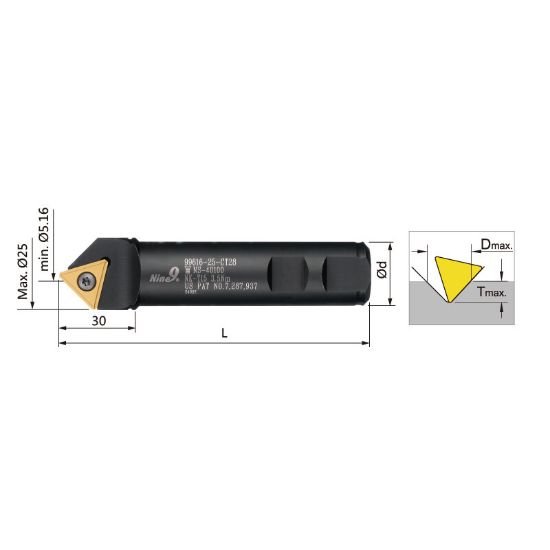

Picture of Nine 99616-1-CT28 Indexable Drill SPOT Drill 1.0000 25.40mm Cutter Dia

Nine 99616-1-CT28 Indexable Drill SPOT Drill 1.0000 25.40mm Cutter Dia

Part Number: EVE20368

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: 1004514
Vendor: Sussex Tool and Supply
$0.00

NINE spot drill tool with 1.0000 cutter diameter 25.40mm steel material. Weldon machine post connection. Toolpost connection type: Weldon. Made in Usa: No.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): SPOT DRILL

Grades & Coatings

  • Alternate Description: NINE 99616-1-CT28 Indexable Drill SPOT DRILL 1.0000 25.40MM Cutter Dia 99616-1-CT28 99616-1-CT28

Other Details

  • Brand: NINE
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Creates a spot hole using a 1.0000 diameter cutter. Functions as a SPOT DRILL for machine tool alignment. Used in drilling operations with Weldon connection.

Composition

Made of Steel. Cutter diameter is 25.40mm. Not specified.

Typical Uses

Applied in spot drilling tasks. Used with machine toolpost via Weldon connection. Fits 99616-1-CT28 tool designation.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Cutter
Made In USA No
Tool Material Steel
Machine Side (Toolpost) SPOT DRILL
Machine Side (Toolpost) Connection Type Weldon
Overall Length 4.7200 119.89MM
Shank Or Pilot Diameter 1.0000 25.40MM
Mach Side Connection Size 1.0000 25.40MM
Tool Diameter 1.0000 25.40MM
Insert Or Tool Tool
Insert Application General Purpose
Insert Style N9
Insert Size (IC) 22
Cut Diameter Min 0.1570 3.99MM - #22
Inter Or Extern Internal
Drill Type Indexable Drill
Type Indexable Drill Spot Drill
Cut Diameter Max 0.9840 24.99MM
