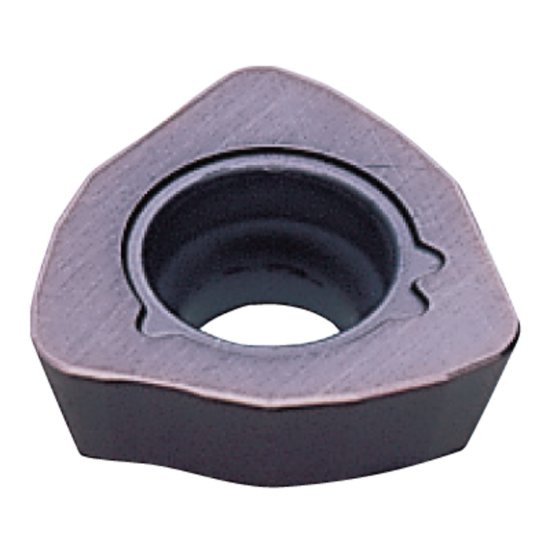

Picture of Mitsubishi JDMW-140520ZDSR-FT FH7020 Milling Insert Trigon Carbide 0.079 Radius

Mitsubishi JDMW-140520ZDSR-FT FH7020 Milling Insert Trigon Carbide 0.079 Radius

Part Number: MIT241040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: 1000235
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

MITSUBISHI trigon carbide milling insert with 0.079 radius. Coated with TiCN and Al2O3. Grade FH7020. Made in USA: No.

Key Details

Materials & Finish

  • Coating: TiCN + Al2O3
  • Grade: FH7020

Grades & Coatings

  • Alternate Description: MITSUBISHI 241040 Trigon Insert Positive TiCN + Al2O3 JDMW140520ZDSRFT FH7020 JDMW-140520ZDSR-FT FH7020

Other Details

  • Brand: MITSUBISHI
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Mitsubishi JDMW-140520ZDSR-FT FH7020 milling insert performs cutting with 0.079 radius. It is designed for precision milling operations. Used in metal cutting with trigon geometry.

Composition

Carbide, TiCN + Al2O3 coating, FH7020 grade. Made with trigon shape. Composition includes positive TiCN and Al203.

Typical Uses

Milling operations with 0.079 radius. Applied in metal cutting tasks. Used in JDMW-140520ZDSR-FT tool applications.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiCN + Al2O3
Insert Or Tool Insert
Insert Application Roughing
Corner Radius 0.0790 2.01MM
Insert Style JD
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Positive
Insert Size (IC) 14
Grade FH7020
Insert Fits Trigon
Hand Right Hand
