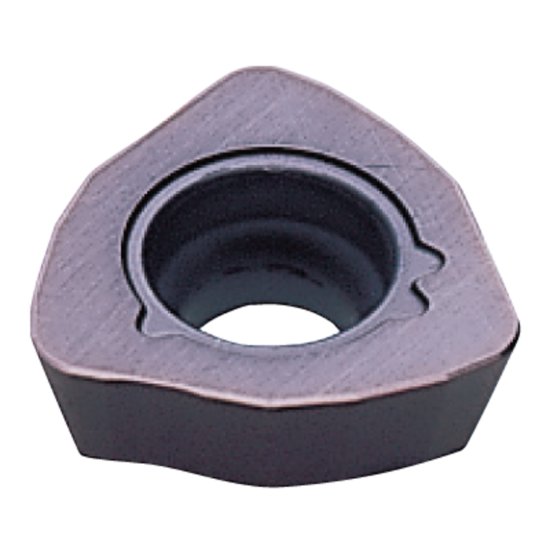

Picture of Mitsubishi JDMW-09T320ZDSR-FT FH7020 Milling Insert Trigon Carbide

Mitsubishi JDMW-09T320ZDSR-FT FH7020 Milling Insert Trigon Carbide

Part Number: MIT241015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: 1000288
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

Mitsubishi trigon carbide milling insert with TiCN and Al2O3 coating grade FH7020. Brand: MITSUBISHI. Coating: TiCN + Al2O3. Grade: FH7020.

Key Details

Materials & Finish

  • Coating: TiCN + Al2O3
  • Grade: FH7020

Grades & Coatings

  • Alternate Description: MITSUBISHI 241015 Trigon Insert Positive TiCN + Al2O3 JDMW09T320ZDSRFT FH7020 JDMW-09T320ZDSR-FT FH7020

Other Details

  • Brand: MITSUBISHI
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Mitsubishi JDMW-09T320ZDSR-FT milling insert performs cutting operations. It uses trigon geometry for precision. Suitable for milling with FH7020 grade carbide.

Composition

Carbide, TiCN + Al2O3 coating, trigon shape. Made with FH7020 grade material. JDMW-09T30ZDSR-FT design.

Typical Uses

Milling operations. Used in cutting tools. Fits FH7020 milling applications.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiCN + Al2O3
Insert Or Tool Insert
Insert Application Roughing
Insert Style JD
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Positive
Insert Size (IC) 9
Grade FH7020
Insert Fits Trigon
Hand Right Hand
