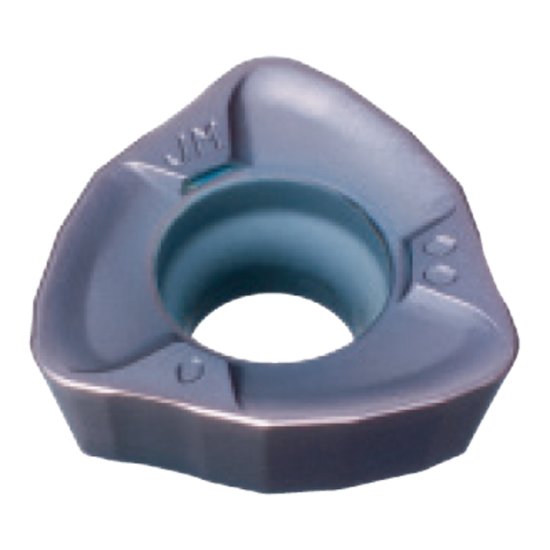

Picture of Mitsubishi JDMT-140520ZDSR FH7020 Milling Insert Trigon Carbide 0.079 Radius

Mitsubishi JDMT-140520ZDSR FH7020 Milling Insert Trigon Carbide 0.079 Radius

Part Number: MIT307871

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: 1000310
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

MITSUBISHI milling insert with trigon carbide 0.079 radius FH7020. Coated with TiCN and Al2O3. Grade FH7020. Shipping state ILLINOIS.

Key Details

Materials & Finish

  • Coating: TiCN + Al2O3
  • Grade: FH7020

Grades & Coatings

  • Alternate Description: MITSUBISHI 307871 Trigon Insert Positive TiCN + Al2O3 JDMT140520ZDSR FH7020 JDMT-140520ZDSR FH7020

Other Details

  • Brand: MITSUBISHI
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Mitsubishi JDMT-140520ZDSR FH7020 milling insert performs cutting with 0.079 radius. It uses trigon geometry for precision milling. Suitable for metal cutting operations with TiCN + Al2O3 coating.

Composition

Carbide insert with TiCN + Al2-03 coating. Grade FH7020. Radius 0.079 inches.

Typical Uses

Milling operations on metals. Used in precision cutting tasks. Fits in trigon tool holders.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiCN + Al2O3
Insert Or Tool Insert
Insert Application Roughing
Corner Radius 0.0790 2.01MM
Insert Style JD
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Positive
Insert Size (IC) 14
Grade FH7020
Insert Fits Trigon
Hand Right Hand
