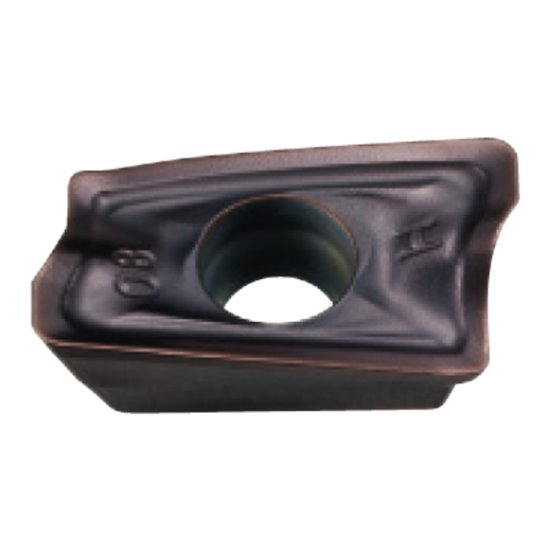

Picture of Mitsubishi AOMT-123616PEER-H MC5020 Milling Insert Paralelagram Carbide 0.063 Radius

Mitsubishi AOMT-123616PEER-H MC5020 Milling Insert Paralelagram Carbide 0.063 Radius

Part Number: MIT545297

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: 1000382
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

MITSUBISHI 545297 Parallelogram Insert AOMT123616PEERH MC5020. Positive TiCN Tl2O3 Ti-Compound grade. Shipping state ILLINOIS. Made in USA no coating.

Key Details

Materials & Finish

  • Coating: TiCN + Tl2O3 + Ti-Compound
  • Grade: MC5020

Grades & Coatings

  • Alternate Description: MITSUBISHI 545297 Parallelogram Insert Positive TiCN + Tl2O3 + Ti-Compound AOMT123616PEERH MC5020 AOMT-123616PEER-H MC5020

Other Details

  • Brand: MITSUBISHI
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Mitsubishi AOMT-123616PEER-H MC5020 milling insert performs parallel cutting with 0.063 radius. It is designed for precision milling operations. Used in metal cutting applications with carbide body.

Composition

Carbide, TiCN + Tl2O3 + Ti-Compound, MC5020 grade. Parallelogram insert structure. 0.063 radius profile.

Typical Uses

Milling operations. Cutting metals. Parallel cutting tasks. Precision machining.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiCN + Tl2O3 + Ti-Compound
Insert Or Tool Insert
Insert Application Roughing, Semi Finishing
Corner Radius 0.0630 1.60MM
Insert Style AO
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 12
Grade MC5020
Insert Fits Parallelogram
