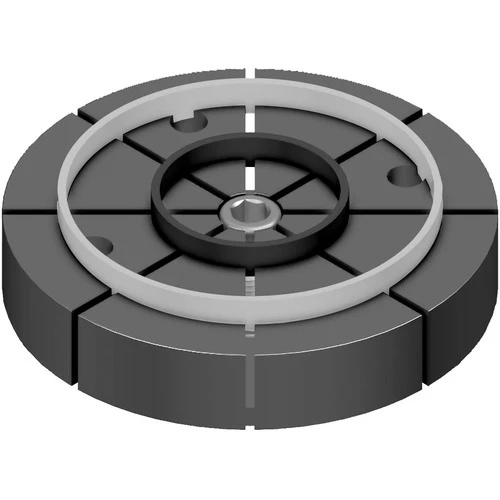

Mitee-Bite 31500 #31500 - NO. 9 ID Expansion Clamp

Locking rings are provided to ensure segments remain rigid while machining clamps to size (#9 and #10 ID’s ship with 2 rings). Insert supplied ring(s) and tighten drive screw to 55 N.m. and machine clamp diameter to +.08/.13mm over bore size. Remove ring(s) and test fitment with workpiece. If workpiece fitment is tight, repeat machining process and machine to achieve a close fit to workpiece MMC bore size. Aggressive material removal is not recommended when machining clamps to size. Suggested machining practice is to spiral down with a 12mm end mill by conventional milling .5mm off the desired clamp diameter at 2 m/s and 0.03mm per flute and .0.5mm depth per trip around. Finish final diameter at 3.6 m/s using same 0.04mm per flute feed and 6mm depth and climb mill.
