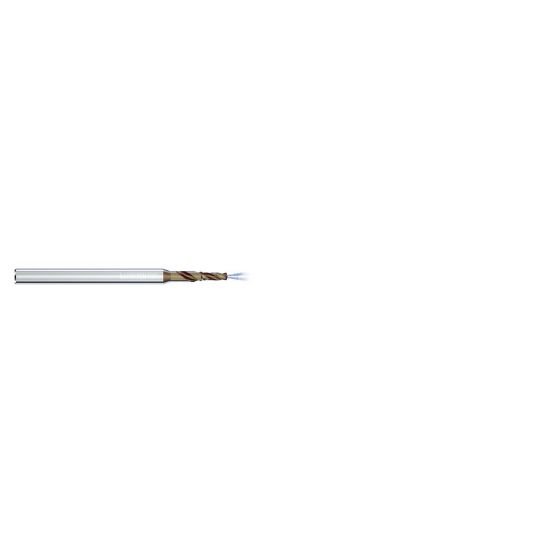

Picture of Micron 2.PD.03600.090.IC Pilot Drill Coolant 141°, 90° 0.139 Diameter Cylindrical 0.236 2.677 OAL 2 Flute 3.0XD

Micron 2.PD.03600.090.IC Pilot Drill Coolant 141°, 90° 0.139 Diameter Cylindrical 0.236 2.677 OAL 2 Flute 3.0XD

Part Number: MIK2.PD.03600.090.IC
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1120547
Vendor: Sussex Tool and Supply
$177.09

Description

MIKRON 2.PD.03600.090.IC Pilot Drill Drill Shank 0.2362 TiAIN + TiN 0.1398 3.55MM Drill Dia 0.4250 10.80MM 3.0XD Flute Length Carbide TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface
Products specifications
Attribute name Attribute value
General Information
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Pilot Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 2.6772 68.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1398 3.55MM
Flute Length 0.4250 10.80MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 141°, 90°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.1398 3.55MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAIN + TiN
