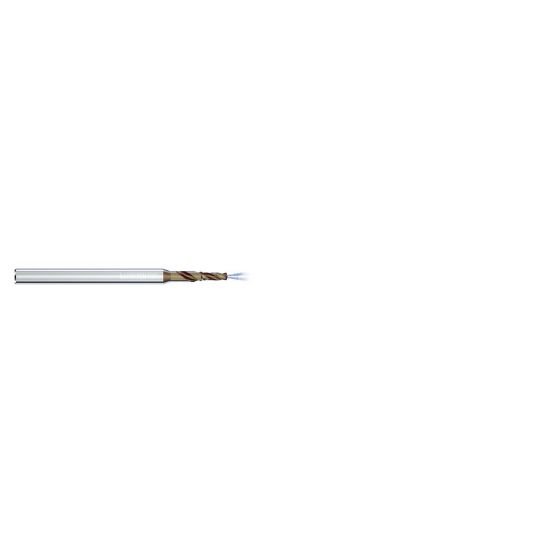

Picture of Micron 2.PD.01000.090.IC Pilot Drill Coolant 141°, 90° 0.039 Diameter Cylindrical 0.157 1.968 OAL 2 Flute 3.0XD

Micron 2.PD.01000.090.IC Pilot Drill Coolant 141°, 90° 0.039 Diameter Cylindrical 0.157 1.968 OAL 2 Flute 3.0XD

Part Number: MIK2.PD.01000.090.IC
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1120492
Vendor: Sussex Tool and Supply
$145.92

Description

MIKRON 2.PD.01000.090.IC Pilot Drill Drill Shank 0.1574 TiAIN + TiN 0.0394 1.00MM Drill Dia 0.1180 3.00MM 3.0XD Flute Length Carbide TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface
Products specifications
Attribute name Attribute value
General Information
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Pilot Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0394 1.00MM
Flute Length 0.1181 3.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 141°, 90°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.0394 1.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAIN + TiN
