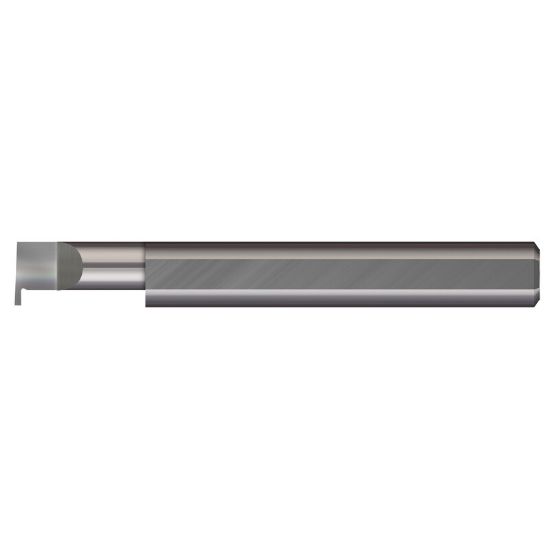

MICRO 100 RR-033-4 Solid Tool Retaining Ring Swiss 0.312 Shank 0.312 Min Bore 2.500 OAL

ANSI: RR-033-4

ISO: RR-033-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICRR-033-4
Delivery date: 3-5 days
$46.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 Swiss
Application Swiss, Int.Solid Grooving, Retaining Ring Grooving
Material # Material#8, Material#3, Material#15, Material#10, Material#20
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Package Size 1
Additional Key Information 2 Retaining Ring
Sold by Pieces 1
Insert/Tool Tool
Additional Key Information 1 Solid Tool
Uncategorized
Made In USA Yes
Dimensional Specifications
Neck Length 0.2500 6.35MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Overall Len 2.5000 63.50MM
Machine Side BBAR0.3125
Tool Material Carbide
Tool Over Hang 0.1000
Min Bore 0.3120
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Centerline Off Set 0.1560
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
