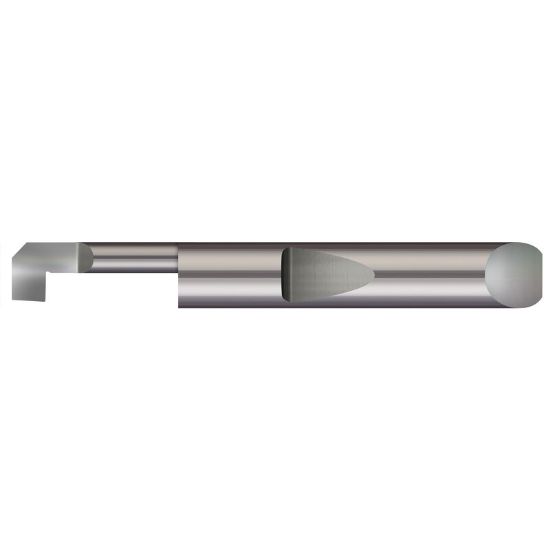

MICRO 100 QRB-3001000 Solid Tool Back Boring Swiss 0.312 Shank 0.3 Min Bore 2.500 OAL

ANSI: QRB-3001000

ISO: QRB-3001000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQRB-3001000
Delivery date: 3-5 days
$49.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#15, Material#10, Material#20, Material#3
Insert Application Finishing, Semi Finishing
Application Int.Solid Back Turning, Swiss
Sold by Pieces 1
Additional Key Information 2 Back Boring
Additional Key Information 3 Swiss
Insert/Tool Tool
Additional Key Information 1 Solid Tool
Shipping State Massachusetts
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Overall Len 2.5000 63.50MM
Machine Side Connection Size 0.3125 7.94MM
Gauge Length 1.3530
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side MICRO312
Tool Over Hang 0.1100
Min Bore 0.3000
Neck Length 1.0000 25.40MM
Centerline Off Set 0.1430
Corner Radius 0.0080 0.20MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
