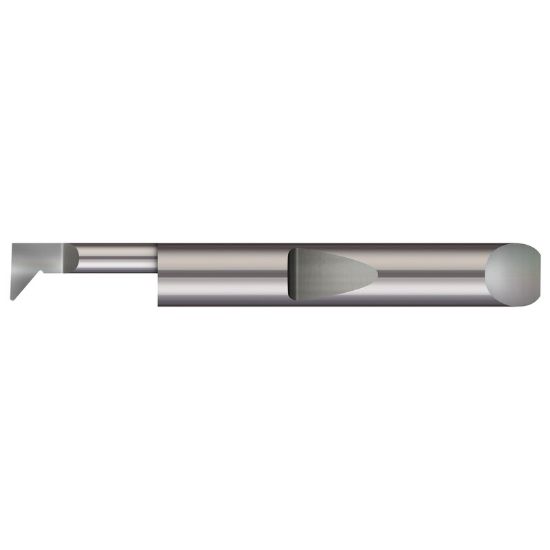

MICRO 100 QPR-3601000 Solid Tool Profiling Swiss 0.375 Shank 0.36 Min Bore 2.500 OAL

ANSI: QPR-3601000

ISO: QPR-3601000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQPR-3601000
Delivery date: 3-5 days
$70.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 Swiss
Application Swiss, Int.Solid Profiling
Material # Material#3, Material#8, Material#20, Material#15, Material#10
Additional Key Information 1 Solid Tool
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Additional Key Information 2 Profiling
Package Size 1
Sold by Pieces 1
Insert/Tool Tool
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Gauge Length 1.3530
Neck Length 1.0000 25.40MM
Centerline Off Set 0.1720
Machine Side MICRO375
Overall Len 2.5000 63.50MM
Tool Over Hang 0.1300
Min Bore 0.3600
Corner Radius 0.0080 0.20MM
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Machine Side Connection Type Micro Qc System
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
