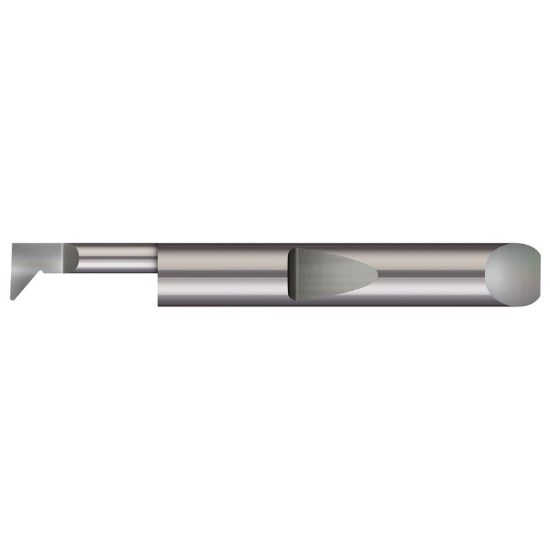

MICRO 100 QPR-2301250 Solid Tool Profiling Swiss 0.312 Shank 0.23 Min Bore 2.500 OAL

ANSI: QPR-2301250

ISO: QPR-2301250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQPR-2301250
Delivery date: 3-5 days
$54.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#3, Material#20, Material#8, Material#15, Material#10
Additional Key Information 1 Solid Tool
Sold by Pieces 1
Insert Application Semi Finishing, Finishing
Additional Key Information 2 Profiling
Additional Key Information 3 Swiss
Application Swiss, Int.Solid Profiling
Insert/Tool Tool
Package Size 1
Shipping State Massachusetts
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Machine Side Connection Type Micro Qc System
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side Connection Size 0.3125 7.94MM
Gauge Length 1.3530
Tool Over Hang 0.0800
Corner Radius 0.0080 0.20MM
Centerline Off Set 0.0730
Min Bore 0.2300
Overall Len 2.5000 63.50MM
Neck Length 1.2500 31.75MM
Machine Side MICRO312
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
