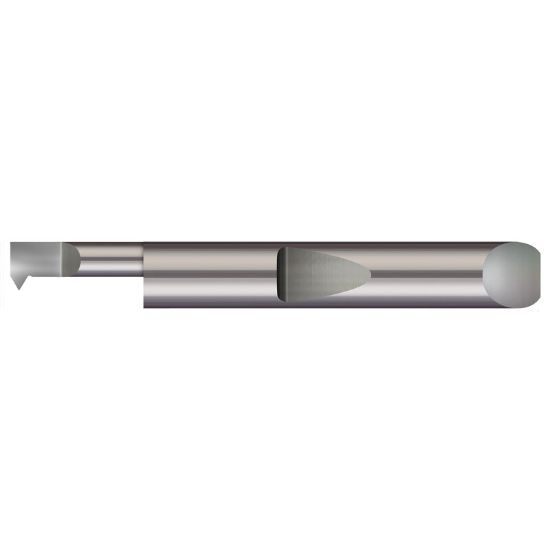

MICRO 100 QIT-140500 Solid Tool Threading Swiss 0.187 Shank 0.14 Min Bore 1.500 OAL

ANSI: QIT-140500

ISO: QIT-140500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQIT-140500
Delivery date: 3-5 days
$42.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Swiss, Int.Solid Threading
Additional Key Information 1 Solid Tool
Additional Key Information 2 Threading
Material # Material#8, Material#20, Material#10, Material#3, Material#15
Insert Application Finishing, Semi Finishing
Insert/Tool Tool
Additional Key Information 3 Swiss
Sold by Pieces 1
Shipping State Massachusetts
Package Size 1
Uncategorized
Full Or Partial Profile Partial Profile
Made In USA Yes
Dimensional Specifications
Thread Pitch 20.00TPI - 56.00TPI 1.27MM - 0.45MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Gauge Length 0.5900
Thread Type UN
Overall Len 1.5000 38.10MM
Machine Side MICRO187
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Neck Length 0.5000 12.70MM
Min Bore 0.1400
Tool Material Carbide
Centerline Off Set 0.0460
Machine Side Connection Size 0.1875 4.76MM
Machine Side Connection Type Micro Qc System
Tool Over Hang 0.0350
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
