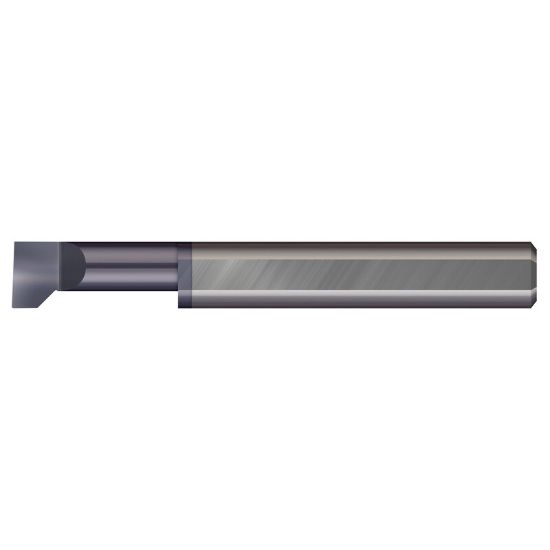

MICRO 100 LTR-312-12X Solid Tool Threading Swiss 0.312 Shank 0.312 Min Bore 2.500 OAL 12.00TPI

ANSI: LTR-312-12X

ISO: LTR-312-12X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICLTR-312-12X
Delivery date: 3-5 days
$57.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#15, Material#10, Material#3, Material#8
Sold by Pieces 1
Insert Application Semi Finishing, Finishing
Additional Key Information 2 Threading
Additional Key Information 3 Swiss
Application Swiss, Int.Solid Threading
Insert/Tool Tool
Additional Key Information 1 Solid Tool
Shipping State Massachusetts
Package Size 1
Uncategorized
Full Or Partial Profile Full Profile
Made In USA Yes
Dimensional Specifications
Min Bore 0.3120
Tool Material Carbide
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side BBAR0.3125
Corner Radius 0.0050 0.13MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Centerline Off Set 0.1560
Thread Pitch 12.00TPI
Overall Len 2.5000 63.50MM
Tool Over Hang 0.7500
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
