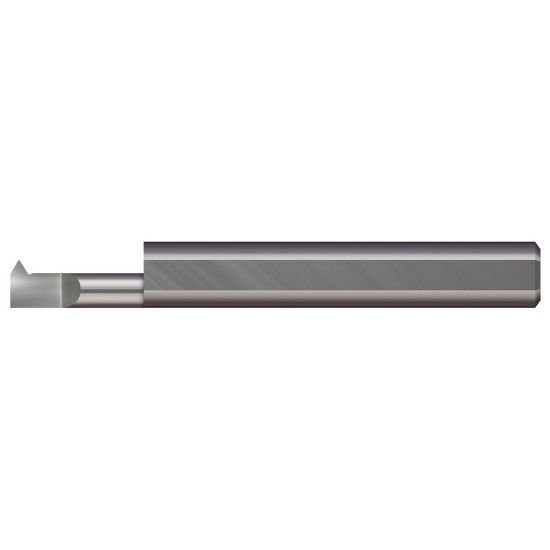

Picture of Micro 100 ITL-2901250 Solid Tool Swiss 0.312 Shank 0.29 Min Bore 2.500 OAL

Micro 100 ITL-2901250 Solid Tool Swiss 0.312 Shank 0.29 Min Bore 2.500 OAL

Part Number: MICITL-2901250 ISO: ITL-2901250 ANSI:ITL-2901250
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1100317
Vendor: Sussex Tool and Supply
$49.40

Description

MICRO 100 ITL-2901250 Solid Tool Boring Bar Dia0.3125 Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid Tool
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Thread Type UN
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Thread Pitch 14.00TPI - 40.00TPI 1.81MM - 0.64MM
Neck Length 1.2500 31.75MM
Tool Over Hang 0.0700
Centerline Off Set 0.134
Geometry & Angles
Corner Radius 0.0020 0.05MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Min Bore 0.2900
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
