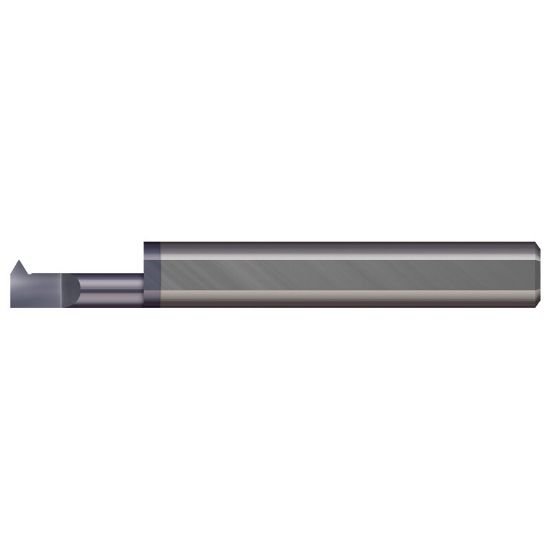

Picture of Micro 100 ITL-200750X Solid Tool Swiss 0.250 Shank 0.2 Min Bore 2.500 OAL

Micro 100 ITL-200750X Solid Tool Swiss 0.250 Shank 0.2 Min Bore 2.500 OAL

Part Number: MICITL-200750X ISO: ITL-200750X ANSI:ITL-200750X
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1102099
Vendor: Sussex Tool and Supply
$45.80

Description

MICRO 100 ITL-200750X Solid Tool Boring Bar TLAR0.2500 Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid Tool
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Thread Type UN
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Thread Pitch 24.00TPI - 40.00TPI 1.06MM - 0.64MM
Tool Over Hang 0.7500
Centerline Off Set 0.075
Geometry & Angles
Corner Radius 0.0020 0.05MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Min Bore 0.2000
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
