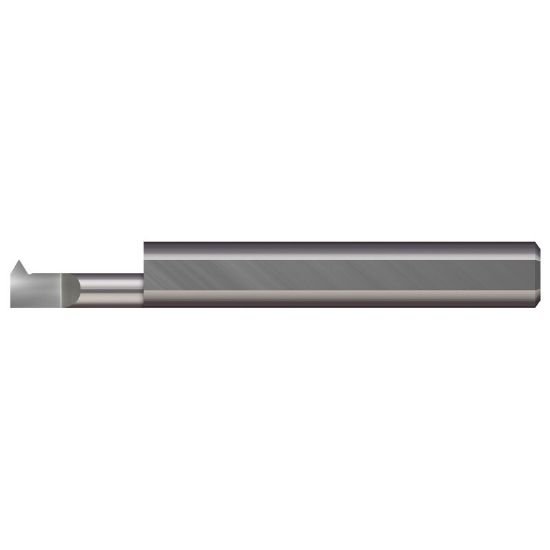

Picture of Micro 100 ITL-100250 Solid Tool Swiss 0.125 Shank 0.1 Min Bore 1.500 OAL

Micro 100 ITL-100250 Solid Tool Swiss 0.125 Shank 0.1 Min Bore 1.500 OAL

Part Number: MICITL-100250 ISO: ITL-100250 ANSI:ITL-100250
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1100285
Vendor: Sussex Tool and Supply
$34.70

Description

MICRO 100 ITL-100250 Solid Tool Boring Bar Dia0.1250 Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid Tool
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Thread Type UN
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Thread Pitch 32.00TPI - 76.00TPI 0.79MM - 0.33MM
Neck Length 0.2500 6.35MM
Tool Over Hang 0.0250
Centerline Off Set 0.038
Geometry & Angles
Corner Radius 0.0020 0.05MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Min Bore 0.1000
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
