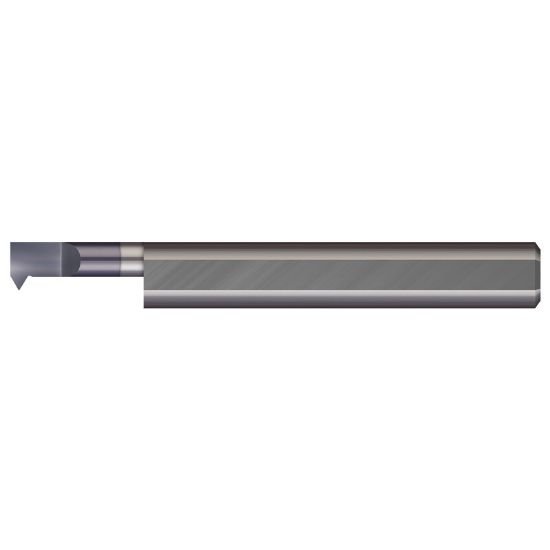

Picture of Micro 100 IT-230400X Solid Tool Swiss 0.312 Shank 0.23 Min Bore 2.500 OAL

Micro 100 IT-230400X Solid Tool Swiss 0.312 Shank 0.23 Min Bore 2.500 OAL

Part Number: MICIT-230400X ISO: IT-230400X ANSI:IT-230400X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: 1102046
Vendor: Sussex Tool and Supply
$57.00
MICRO 100 IT-230400X Solid Tool Boring Bar Dia0.3125 Carbide
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid Tool
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application Finishing, Semi Finishing
Corner Radius 0.0020 0.05MM
Thread Pitch 20.00TPI - 40.00TPI 1.27MM - 0.64MM
Thread Type UN
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Swiss/Multi Spindle SWISS
Min Bore 0.2300
Tool Over Hang 0.4000
Centerline Off Set 0.074
