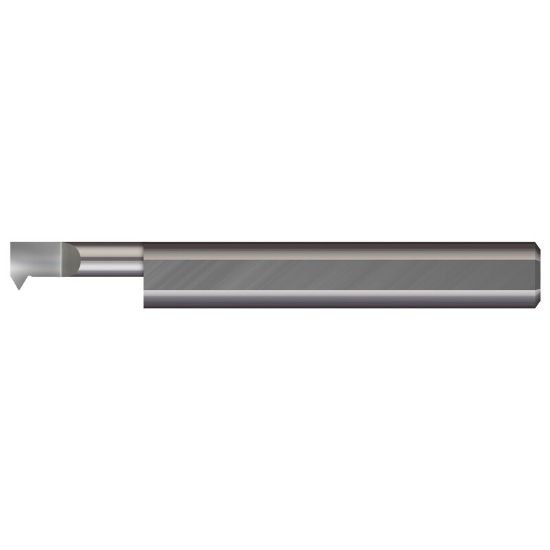

Picture of Micro 100 IT-140250 Solid Tool Swiss 0.187 Shank 0.14 Min Bore 2.000 OAL

Micro 100 IT-140250 Solid Tool Swiss 0.187 Shank 0.14 Min Bore 2.000 OAL

Part Number: MICIT-140250 ISO: IT-140250 ANSI:IT-140250
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1100236
Vendor: Sussex Tool and Supply
$37.00

Description

MICRO 100 IT-140250 Solid Tool Boring Bar Dia0.1875 Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid Tool
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Thread Type UN
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Thread Pitch 28.00TPI - 56.00TPI 0.91MM - 0.45MM
Neck Length 0.2500 6.35MM
Tool Over Hang 0.0350
Centerline Off Set 0.046
Geometry & Angles
Corner Radius 0.0020 0.05MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Min Bore 0.1400
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
