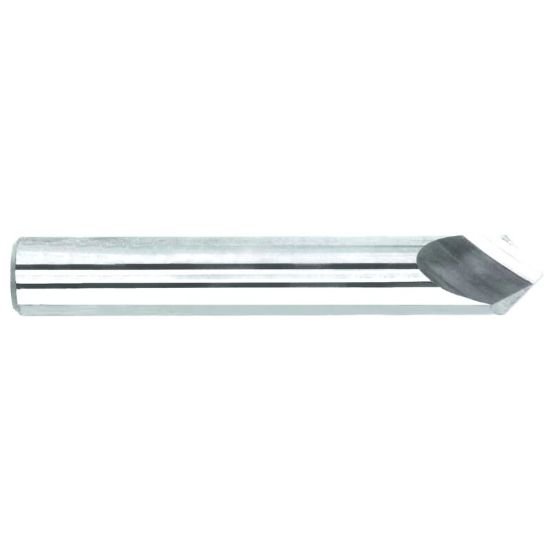

Picture of Melin H8023 Dia 5/32 SH 0.1875 LOC 0.0450 OAL2.50Chamfer Mill Carbide Uncoated Single End Cham Mill

Melin H8023 Dia 5/32 SH 0.1875 LOC 0.0450 OAL2.50Chamfer Mill Carbide Uncoated Single End Cham Mill

Part Number: MELH8023 0.156 x 0.188 x 0.045 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1263983

Description

MELIN Chamfer Mill Carbide Uncoated Cham Mill Flutes 4 Single End MELIN Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio/California
Made In USA YES
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Chamfer
Cutter Style Carbide Double Angle Chamfer
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1563 3.97MM - 5/32
Length Of Cut 0.0450 1.14MM
Geometry & Angles
Chamfer Angle 60.0°
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
