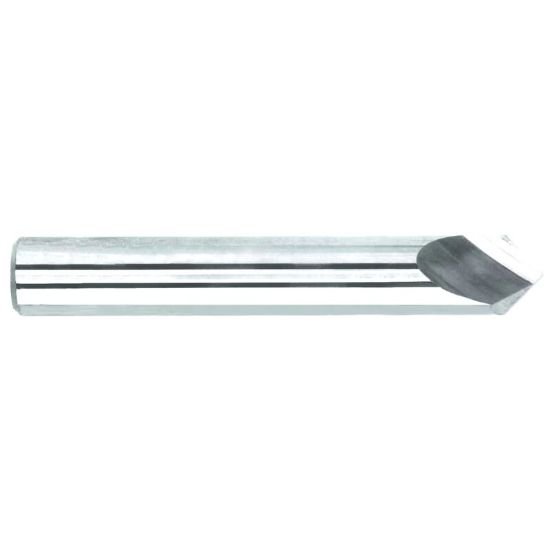

Picture of Melin H7763 Dia 1/4 SH 0.2500 LOC 0.0950 OAL2.50Chamfer Mill Carbide ZrN Single End Cham Mill

Melin H7763 Dia 1/4 SH 0.2500 LOC 0.0950 OAL2.50Chamfer Mill Carbide ZrN Single End Cham Mill

Part Number: MELH7763 0.250 x 0.250 x 0.095 x 2.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1263914
Vendor: Sussex Tool and Supply
$32.29

Description

MELIN Chamfer Mill Carbide ZrN Cham Mill Flutes 3 Single End MELIN Carbide Used for Aluminum and other non-ferrous materials
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio/California
Made In USA YES
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Chamfer
Cutter Style Chamfer Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.0950 2.41MM
Geometry & Angles
Helix Angle 30
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ZrN
