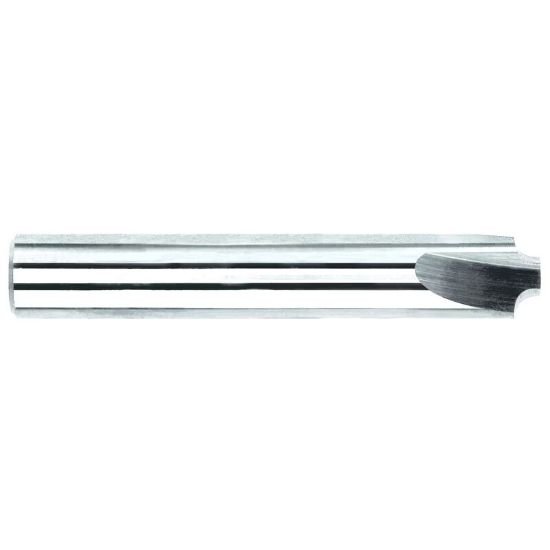

Picture of Melin 64380 Dia 1/2 Sh 0.50 Loc 0.6250 Oal3.00 End Mill Standard Flute Standard Helix Carbide Zrn Single End Corner Radius0.0100 0.25mm

Melin 64380 Dia 1/2 Sh 0.50 Loc 0.6250 Oal3.00 End Mill Standard Flute Standard Helix Carbide Zrn Single End Corner Radius0.0100 0.25mm

Part Number: MEL64380

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1003147
Vendor: Sussex Tool and Supply
$0.00

Melin 64380 carbide end mill has standard flute and helix. ZrN coating with cylindrical connection 0.5000 inch. Made in USA with machine side cylindrical connection. Tool material is carbide.

Key Details

Materials & Finish

  • Coating: ZrN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.5000

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Carbide ZrN Corner Radius 0.0100 0.25MM Standard Flute Flutes 3 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Designed for standard end mill operations. Performs cutting with corner radius 0.0100 0.25mm.

Composition

Carbide ZrN coating, cylindrical connection, 0.5000 machine side.

Typical Uses

Used in machining with standard flute end mill. Fits toolpost with cylindrical connection. Operates in standard end mill applications.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.5000
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.0000 76.20MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Family Group Melin
Coolant Thru Non Coolant
Coating ZrN
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 0.5000 12.70MM - 1/2
Flutes Or Inserts 3
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0100 0.25MM
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
Neck Length 1.2500 31.75MM
