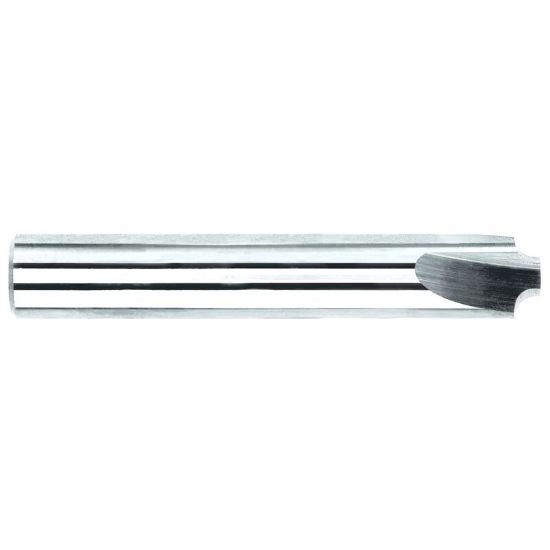

Picture of Melin 45024 Dia 3/4 Sh 0.7500 Loc 1.00 Oal5.00 End Mill Standard Flute Standard Helix Carbide Ticn Single End Corner Radius0.1200 3.05mm

Melin 45024 Dia 3/4 Sh 0.7500 Loc 1.00 Oal5.00 End Mill Standard Flute Standard Helix Carbide Ticn Single End Corner Radius0.1200 3.05mm

Part Number: MEL45024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1002304
Vendor: Sussex Tool and Supply
$0.00

Melin 45024 carbide end mill with standard flute helix and 0.1200 corner radius. Made in USA with TiCN coating. Cylindrical 0.7500 toolpost connection. Standard flute flutes 3 single end.

Key Details

Materials & Finish

  • Coating: TiCN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.7500

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Carbide TiCN Corner Radius 0.1200 3.05MM Standard Flute Flutes 3 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Designed for standard toolpost use. Suitable for end milling operations.

Composition

Carbide tool material with TiCN coating. Corner radius 0.1200, 3.05mm. Standard flute and helix design.

Typical Uses

Used in end milling with cylindrical connection. Operates on machine toolpost. Ideal for standard cutting tasks.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.7500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 5.0000 127.00MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Family Group Melin
Coolant Thru Non Coolant
Coating TiCN
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 0.7500 19.05MM - 3/4
Flutes Or Inserts 3
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.1200 3.05MM
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
Neck Length 3.0000 76.20MM
