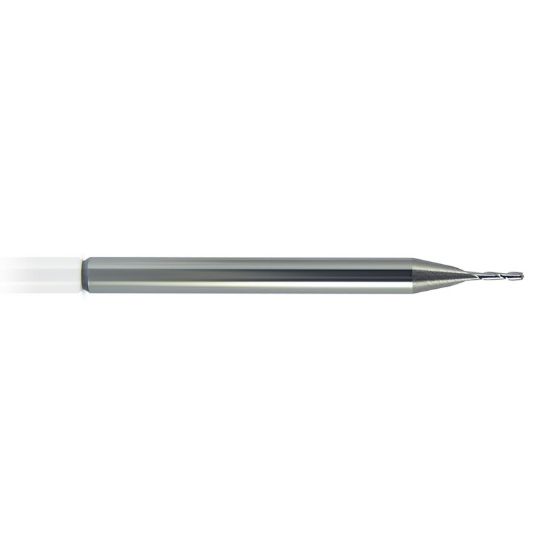

MELIN 41140 DIA 3/32 SH 0.1875 LOC 0.2812 OAL1.50 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL41140
Delivery date: 3-5 days
$21.98
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#17, Material#15, Material#10, Material#3
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Coating TiCN
Shipping State Ohio/California
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Additional Key Information 2 Sharp
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Performance Rating General Performance
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Cobalt
Single/Double End Single End
Dimension Description 0.094 x 0.188 x 0.281 x 1.500
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Helix Angle 30°
Machine Side WELDON0.1875
Length Of Cut 0.2813 7.15MM
End Of Tool Shape Square
Inch/Metric Inch
Cutter Dia 0.0938 2.38MM - 3/32
Machine Side Connection Size 0.1875 4.76MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 1.5000 38.10MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
