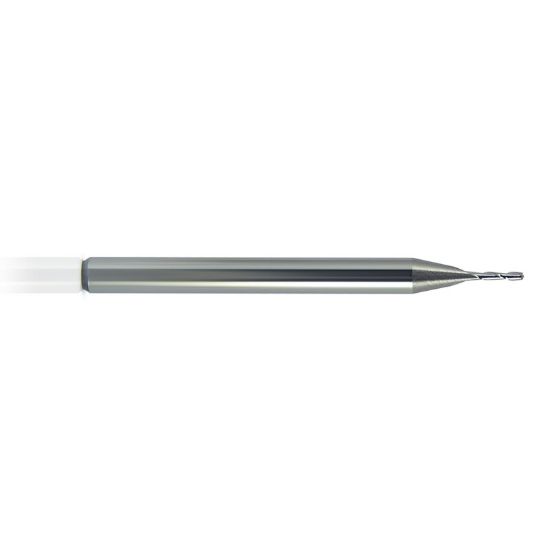

MELIN 40014 DIA 1/8 SH 0.1875 LOC 0.3750 OAL1.50 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL40014
Delivery date: 3-5 days
$22.04
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#8, Material#17, Material#10, Material#3
Sold by Pieces 1
Additional Key Information 3 Standard Flute
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Ohio/California
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Coating TiCN
Package Size 1
Additional Key Information 4 Standard Helix
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Weldon
Length Of Cut 0.3750 9.53MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 1.5000 38.10MM
Dimension Description 0.125 x 0.188 x 0.375 x 1.500
Tool Material Cobalt
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Single/Double End Single End
Machine Side Connection Size 0.1875 4.76MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Type Standard
Machine Side WELDON0.1875
End Of Tool Shape Square
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
