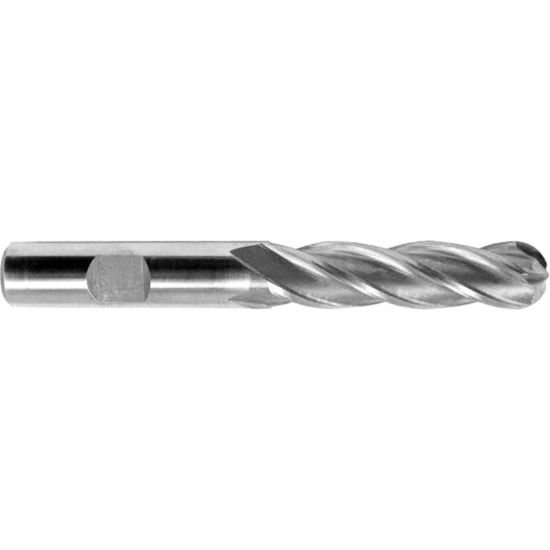

Picture of Melin 17767 Dia 0.43mm Sh 0.1250 Loc 0.0260 Oal1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Noseball

Melin 17767 Dia 0.43mm Sh 0.1250 Loc 0.0260 Oal1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Noseball

Part Number: MEL17767

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1002407
Vendor: Sussex Tool and Supply
$0.00

Melin ball nose end mill with standard flute and helix. Made in USA with carbide uncoated tool. Cylindrical toolpost connection. Shipping to Ohio, California.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1250

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Designed for ball nose end milling operations. Used in machining with cylindrical toolpost connection.

Composition

Carbide, uncoated, standard flute, standard helix, single end ball nose.

Typical Uses

Machining with cylindrical toolpost. End milling on standard machines. Ball nose operations in metal cutting.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 1.5000 38.10MM- 1-1/2
Shank Or Pilot Diameter 0.1250 3.17MM - 1/8
Family Group Melin
Coolant Thru Non Coolant
Mach Side Connection Size 0.1250 3.18MM - 1/8
Tool Diameter 0.0170 0.43MM
Flutes Or Inserts 2
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.0260 0.66MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single Or Double End Single End
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
