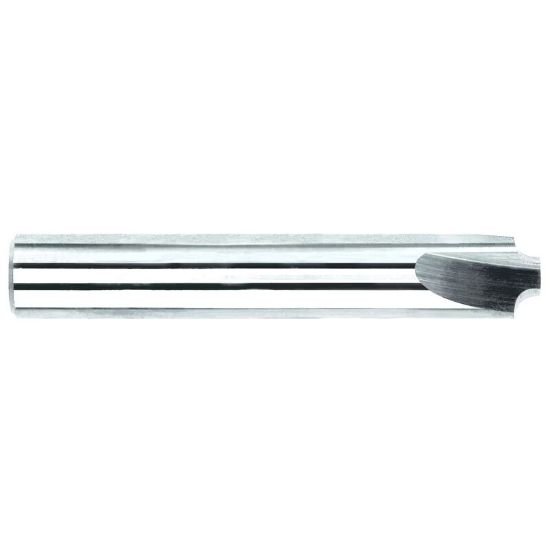

Picture of Melin 17730 Dia 7/16 Sh 0.4375 Loc 1.00 Oal2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm - 0.0200 0.51mm

Melin 17730 Dia 7/16 Sh 0.4375 Loc 1.00 Oal2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm - 0.0200 0.51mm

Part Number: MEL17730

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1002149
Vendor: Sussex Tool and Supply
$0.00

Melin end mill with standard flute and helix made in USA. Carbide uncoated cylindrical 0.4375 connection. Corner radius 0.0150 to 0.0200 mm. Machine side connection type cylindrical.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.4375

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Carbide Uncoated Corner Radius 0.0150 0.38MM - 0.0200 0.51MM Standard Flute Flutes 3 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs single end corner radius cutting. Suitable for machine side toolpost operations.

Composition

Carbide uncoated material. Cylindrical connection 0.4375. Standard flute and helix design.

Typical Uses

Used in machine toolpost setups. Operates with 0.4375 diameter. Applied in standard cutting tasks with 0.38mm to 0.51mm corner radius.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.4375
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.7500 69.85MM
Shank Or Pilot Diameter 0.4375 11.11MM - 7/16
Family Group Melin
Coolant Thru Non Coolant
Mach Side Connection Size 0.4375 11.11MM - 7/16
Tool Diameter 0.4375 11.11MM - 7/16
Flutes Or Inserts 3
Length Type Standard
Performance Rating General Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0150 0.38MM - 0.0200 0.51MM
Inch Or Metric Inch
Helix Angle 35°
Center Cutting Center Cutting
