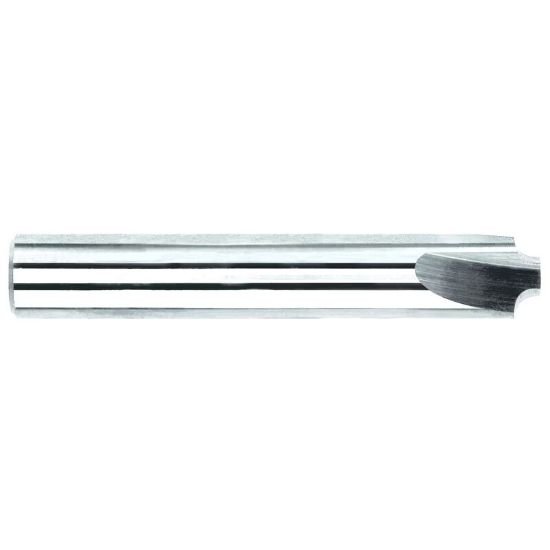

Picture of Melin 16880 Dia 9mm Sh 0.3937 Loc 0.8660 Oal2.7559 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0276 0.70mm

Melin 16880 Dia 9mm Sh 0.3937 Loc 0.8660 Oal2.7559 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0276 0.70mm

Part Number: MEL16880

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1002851
Vendor: Sussex Tool and Supply
$0.00

Melin 16880 carbide end mill has standard flute and helix. It features cylindrical connection 0.3937 inches diameter. Made in USA with 0.70mm corner radius. Tool material is carbide.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.3937

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Carbide Uncoated Corner Radius 0.0276 0.70MM Standard Flute Flutes 4 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Designed for standard toolpost use. Operates with cylindrical connection.

Composition

Carbide uncoated, cylindrical connection, standard flute.

Typical Uses

Used in machining with standard helix end mill. Fits machine toolpost with cylindrical end. Suitable for cutting operations with 0.3937 diameter.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.3937
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.7560 70.00MM
Shank Or Pilot Diameter 0.3937 10.00MM
Family Group Melin
Coolant Thru Non Coolant
Mach Side Connection Size 0.3937 10.00MM
Tool Diameter 0.3543 9.00MM
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.8660 22.00MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0276 0.70MM
Inch Or Metric Metric
Helix Angle 30°
Center Cutting Center Cutting
