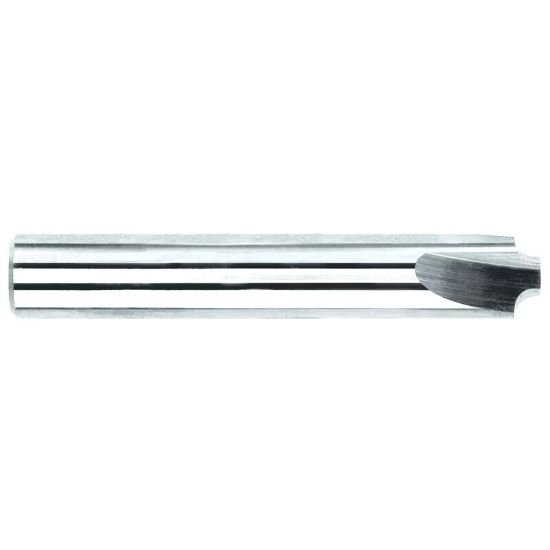

Picture of Melin 16870 Dia 2mm Sh 0.1181 Loc 0.3543 Oal1.4961 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0157 0.40mm

Melin 16870 Dia 2mm Sh 0.1181 Loc 0.3543 Oal1.4961 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0157 0.40mm

Part Number: MEL16870

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: 1002846
Vendor: Sussex Tool and Supply
$0.00

Melin end mill with carbide uncoated blade. Cylindrical connection 0.1181 inch. Four flutes, single end corner radius 0.0157 inch. Made in USA, shipping to Ohio, California.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1181

Grades & Coatings

  • Alternate Description: MELIN Standard Helix End Mill Carbide Uncoated Corner Radius 0.0157 0.40MM Standard Flute Flutes 4 Single End MELIN

Other Details

  • Brand: MELIN
  • Shipping State: OHIO,CALIFORNIA
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs single end corner radius cutting. Suitable for standard machine operations.

Composition

Carbide uncoated, cylindrical connection, standard flute.

Typical Uses

Used in machine post with cylindrical connection. Operates in standard cutting tasks. Fits in standard toolpost setups.

Products specifications
Attribute name Attribute value
Shipping State OHIO, CALIFORNIA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1181
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 1.4961 38.00MM
Shank Or Pilot Diameter 0.1181 3.00MM
Family Group Melin
Coolant Thru Non Coolant
Mach Side Connection Size 0.1181 3.00MM
Tool Diameter 0.0787 2.00MM
Flutes Or Inserts 4
Type of Tool End Mill
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.3543 9.00MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0157 0.40MM
Inch Or Metric Metric
Helix Angle 30°
Center Cutting Center Cutting
