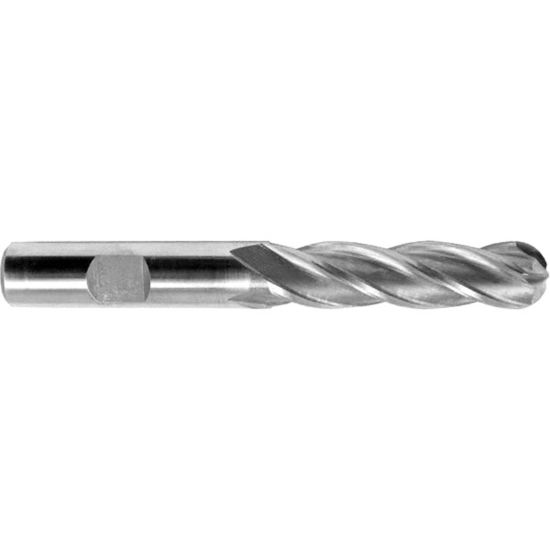

MELIN 16196 DIA 3/4 SH 0.7500 LOC 2.2500 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16196
Delivery date: 3-5 days
$341.94
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 Standard Flute
Application Ball Slot Milling, Profile Milling, Copy Milling, Ball Milling, Side Milling
Shipping State Ohio/California
Material # Material#15, Material#10, Material#17, Material#8, Material#3
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Package Size 1
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 4
Length Type Standard
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Dimension Description 0.750 x 0.750 x 2.250 x 5.000
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Machine Side CYLINDRICAL0.7500
Overall Len 5.0000 127.00MM
Length Of Cut 2.2500 57.15MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
